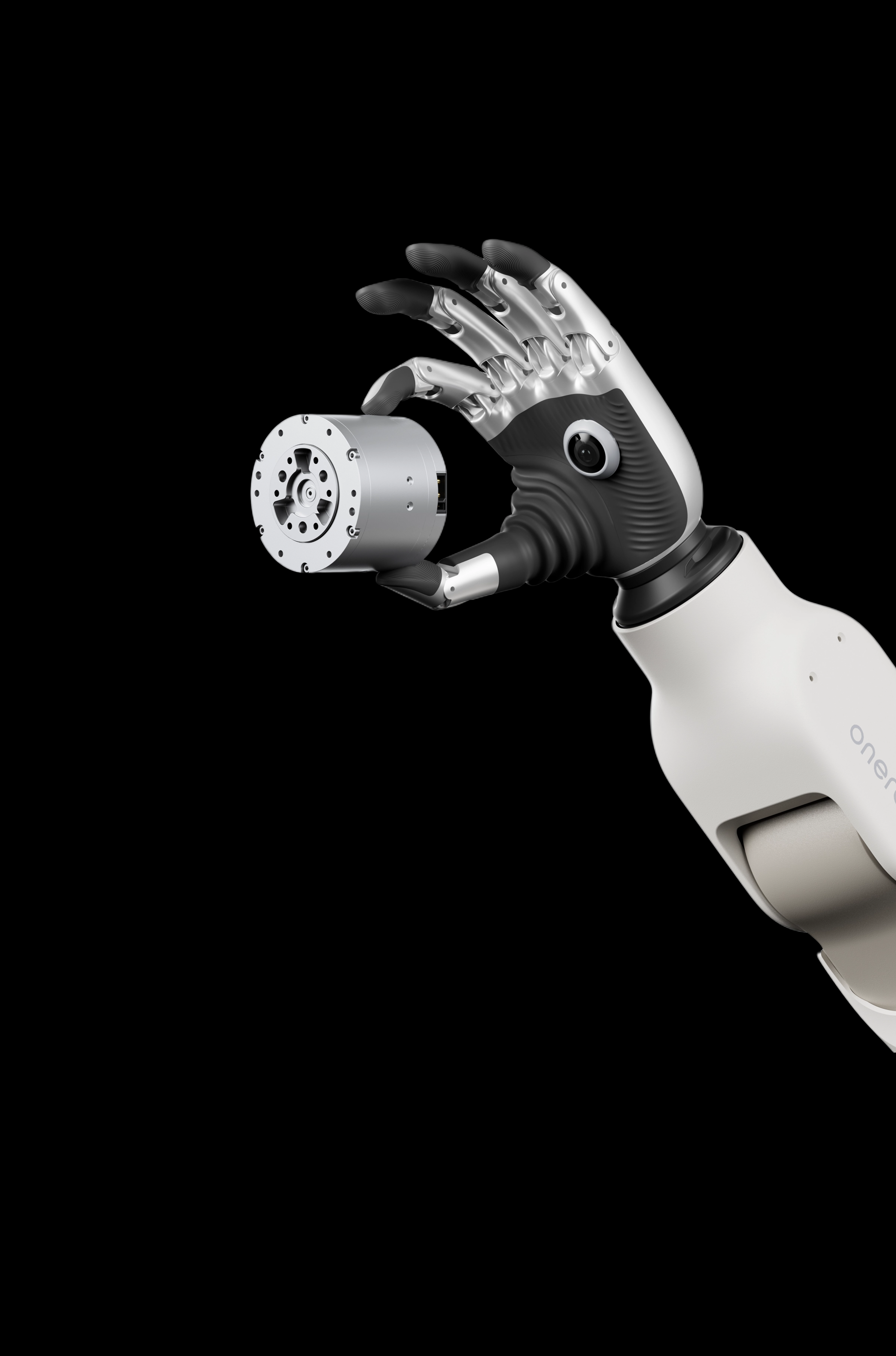

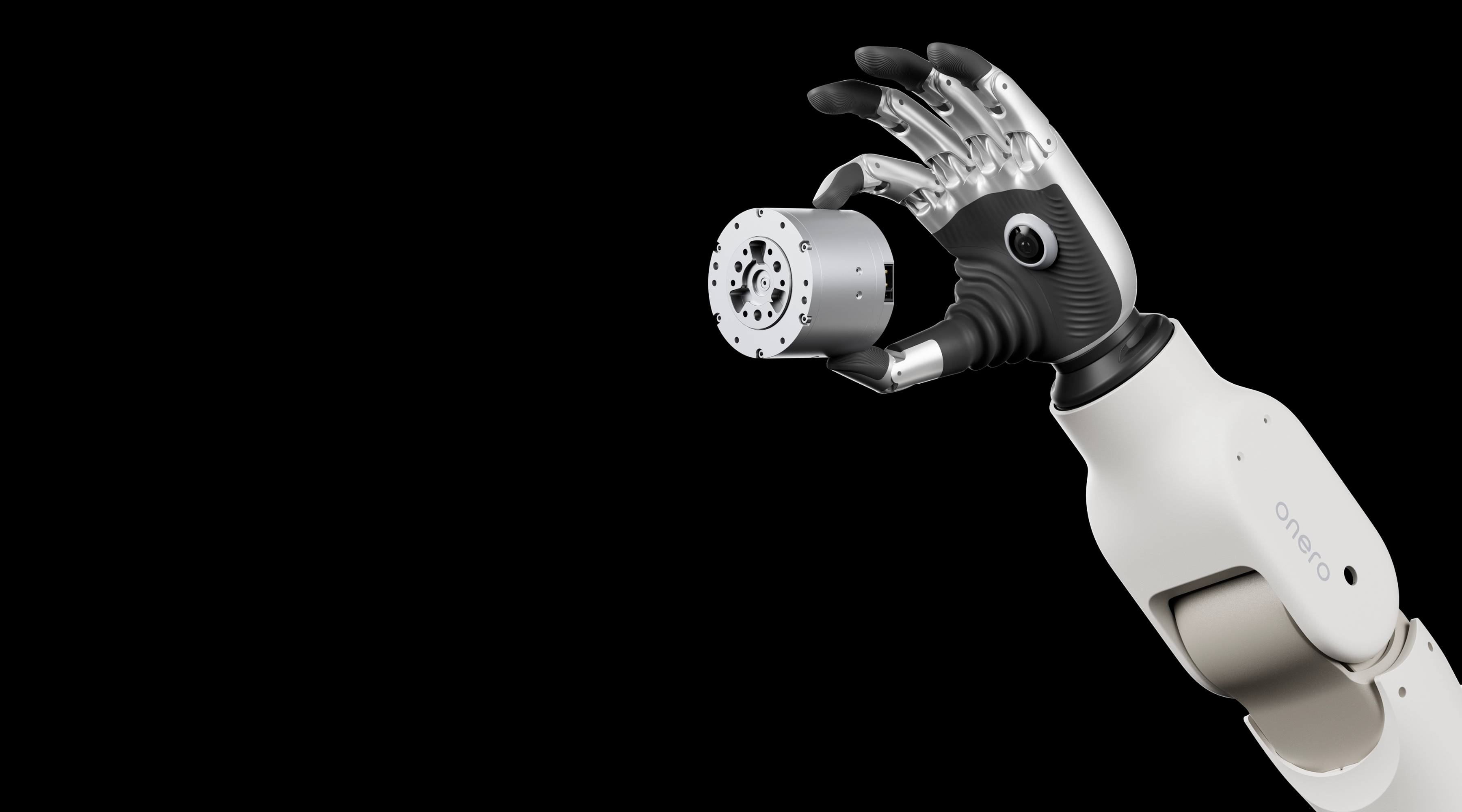

Joint Actuator

Designed for High-Performance Robots

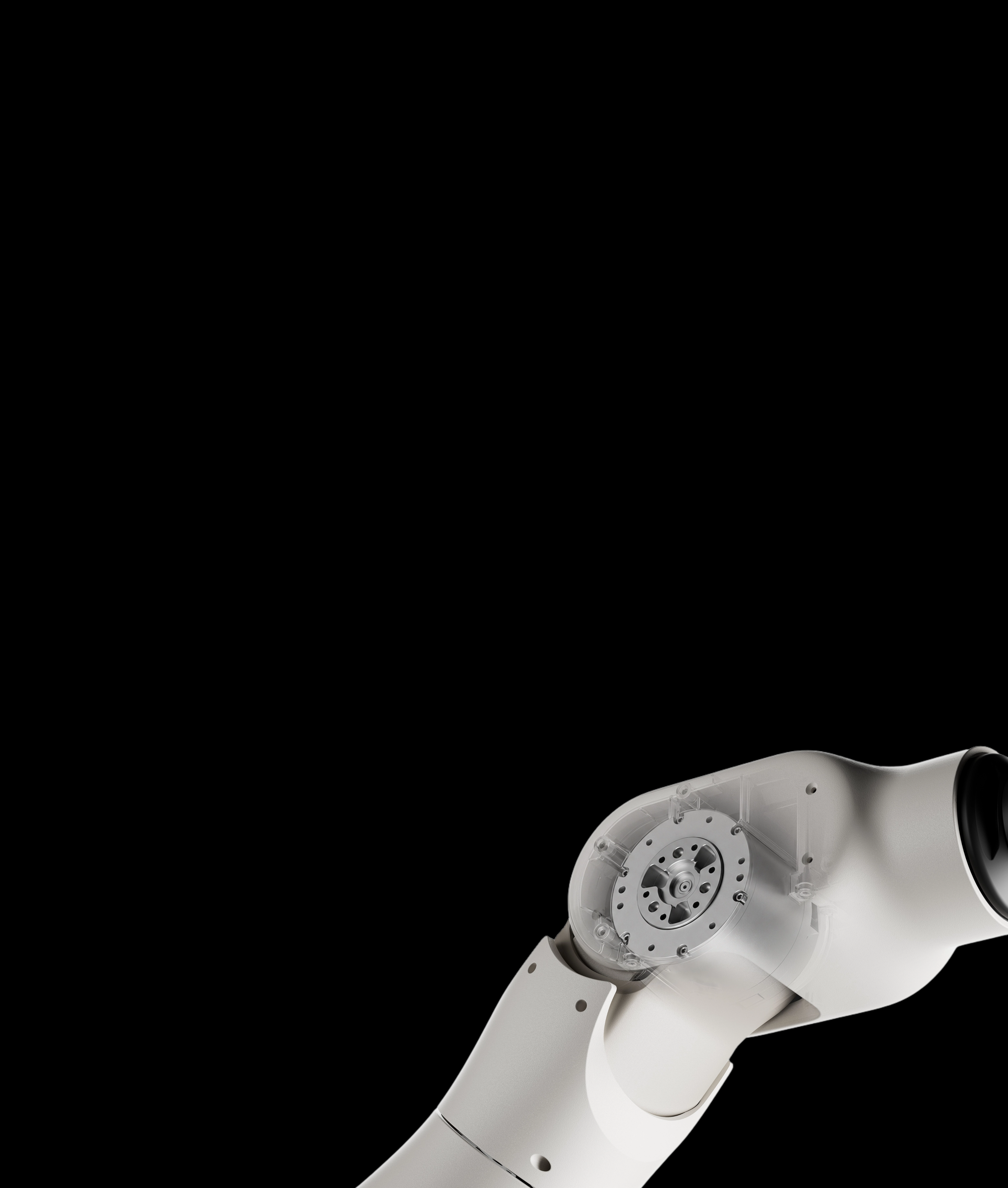

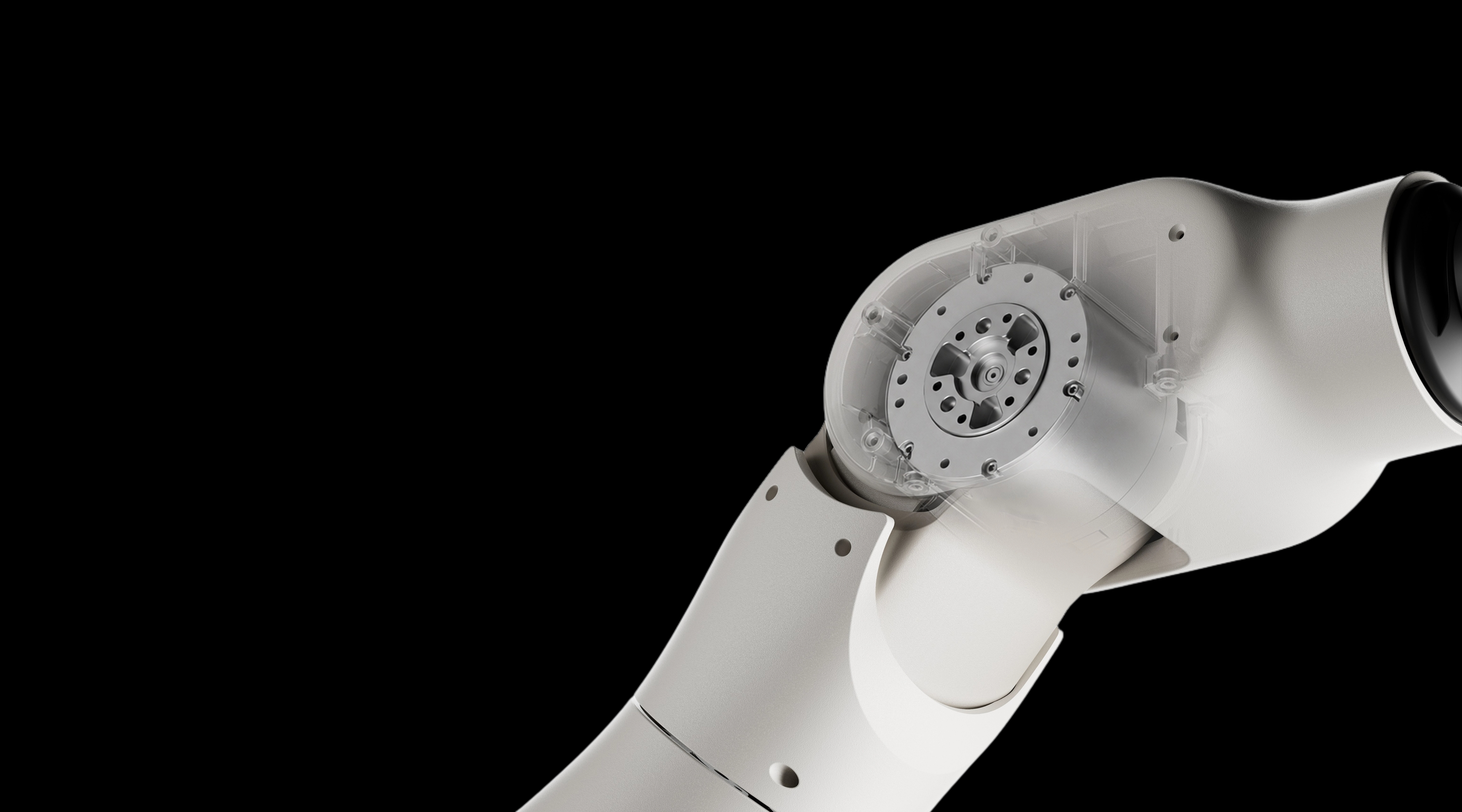

A robot joint does more than generate torque—it also serves as a load-bearing structural element and enables a more integrated robotic-arm design.

It is an excellent choice for robotics competitions, DIY projects, research, education, and robotic system development.

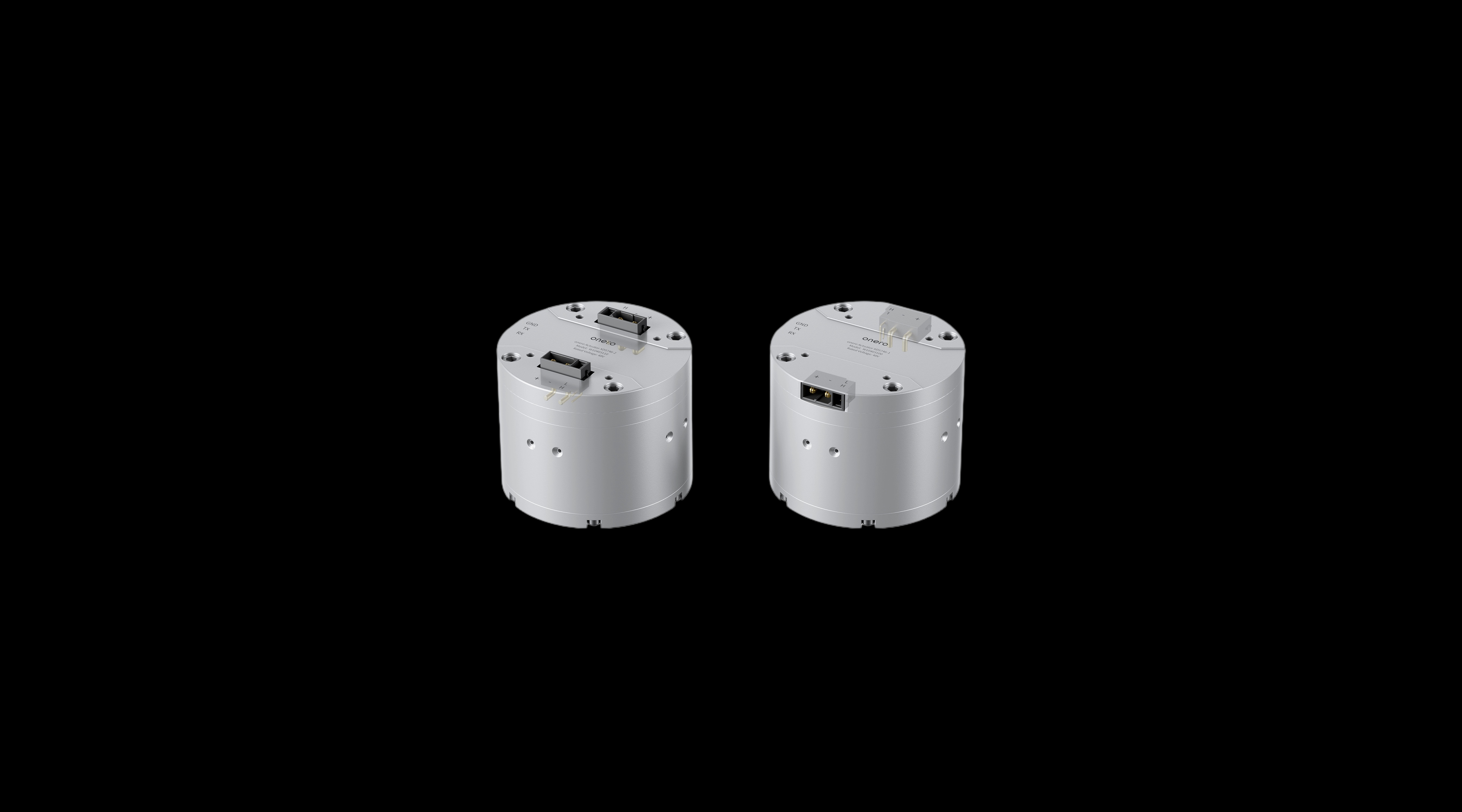

Two Cable-Exit Configurations

Choose between side-exit and rear-exit cabling for greater flexibility in mechanical design.

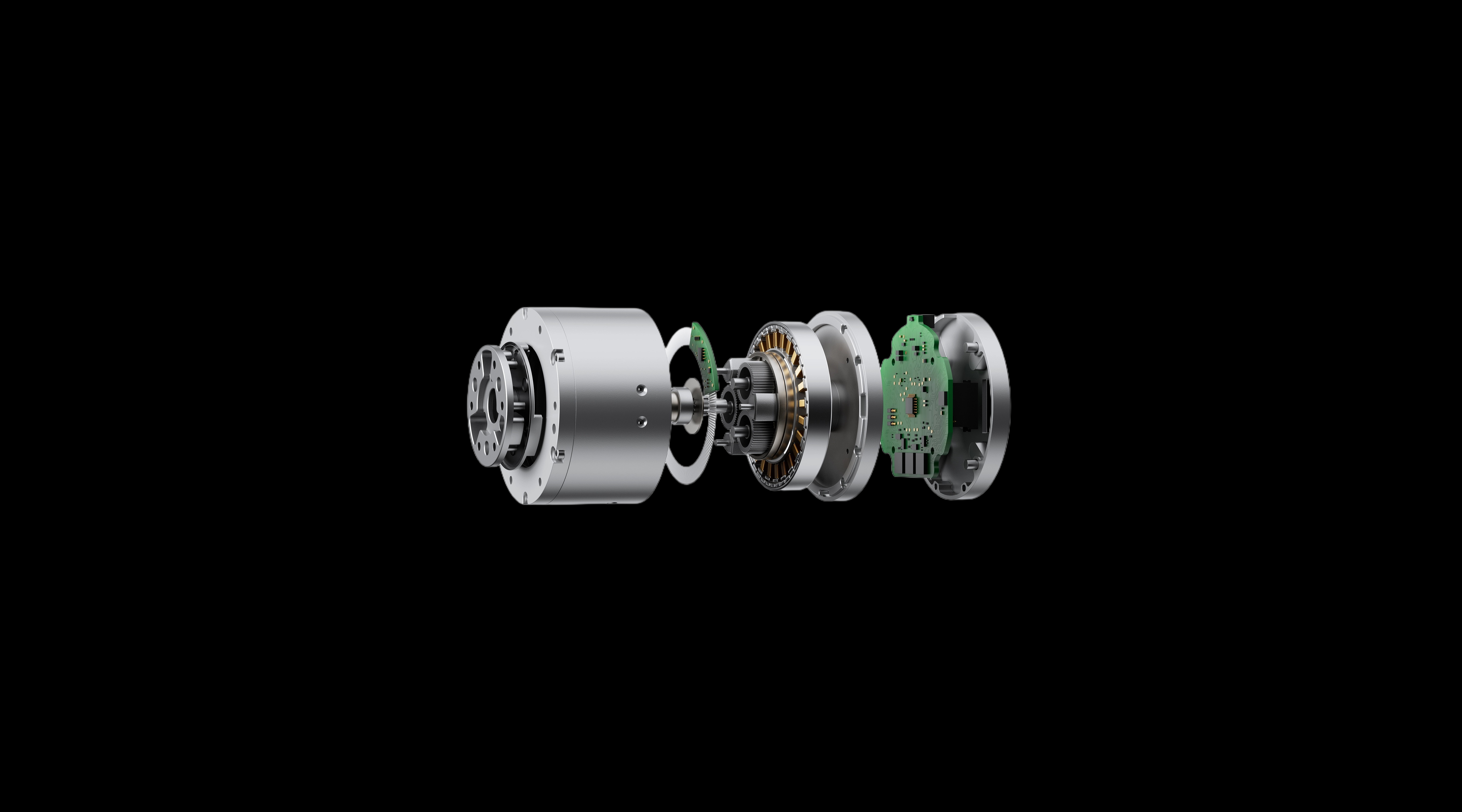

21-Bit Dual Encoders

Provides single-turn absolute position sensing at the output shaft and retains position data after power loss,
allowing the system to restore its state reliably during repeated experiments and demonstrations.

Applications

Humanoid Embodied AI Robots

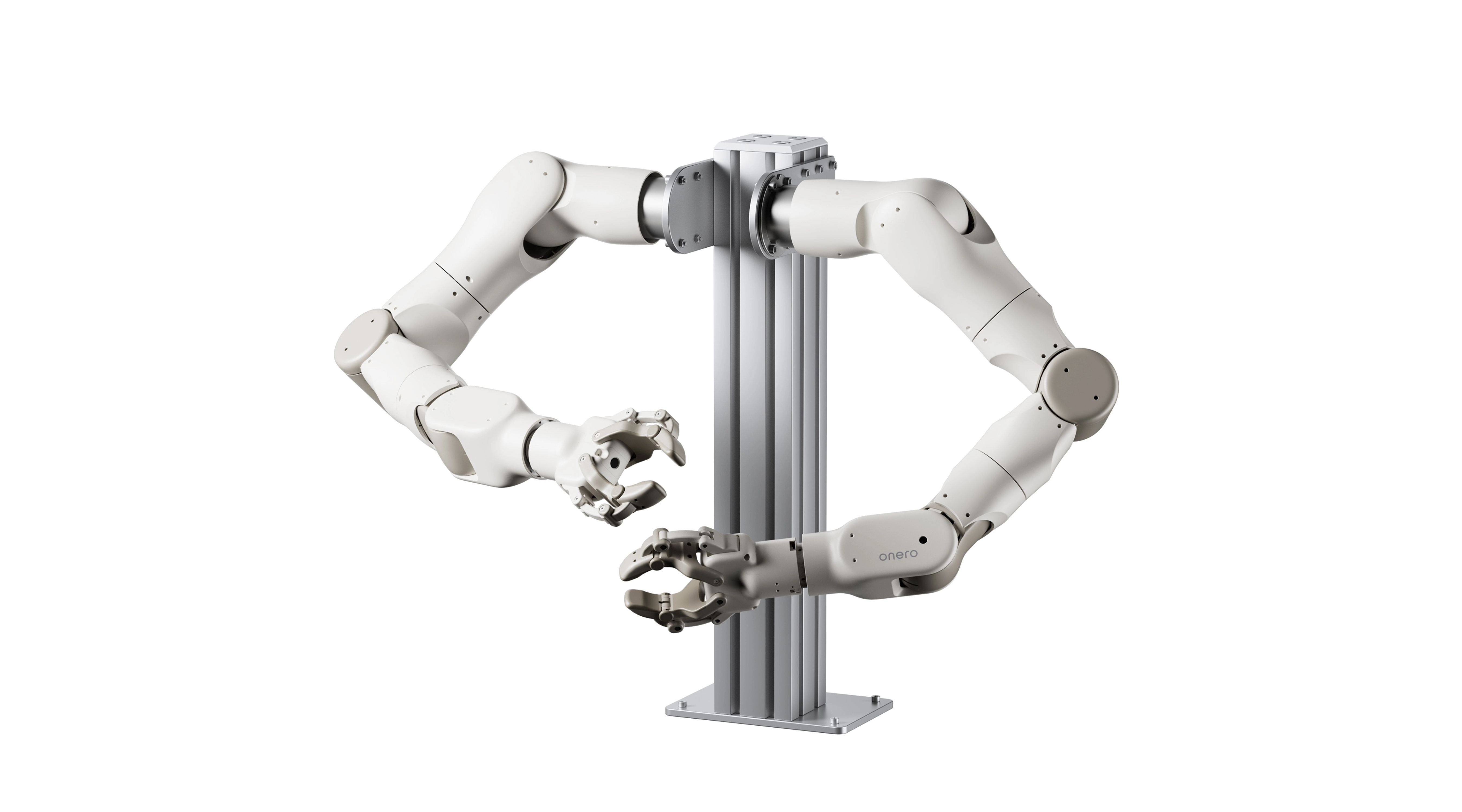

Embodied AI Robotic Arms

Specs

Category	Parameter	XD5746-1/2	XD5757-1/2
Performance Specifications	Rated voltage	48V	48V
	Rated torque	3N·m	15N·m
	Rated speed	120rpm	25rpm
	Rated current	3.7A	3.7A
	Operating voltag	20V~55V	20V~55V
	Peak torque	7N·m	30N·m
	Maximum no-load speed	200rpm	40rpm
	Peak current	7.4A	7.4A
	Number of pole pairs	14	14
	Gear ratio	10:01	48.19:1
	Rotational backlash	10 arcmin	20 arcmin
Mechanical Specifications	Diameter	57mm	57mm
	Height	46mm	56.5mm
	Weight	320g	390g
	Operating temperature range	5~50℃	5~50℃
	Operating humidity range	35–80% RH, non-condensing	35–80% RH, non-condensing
Interface Specifications	Electrical interface	CAN@1Mbps	CAN@1Mbps
Interface Specifications	Communication connector	XT30(2+2)	XT30(2+2)

[1] The specifications and performance data shown on this page are based on standard test conditions. Actual performance should be evaluated against the requirements of the intended application and verified through testing. Accuracy and dynamic performance may vary with robotic-arm configuration, payload, and test standard.

[2] Follow the user manual strictly. Ensure correct wiring, secure installation, and adequate heat dissipation. Unauthorized disassembly or modification is prohibited.

[3] This product is a core component intended for civilian robotic applications. Do not use it for hazardous modifications or unauthorized purposes. Users must comply with all applicable local laws, regulations, and safety standards.

[4] For additional product terms, technical documentation, and support information, refer to the latest official materials.
